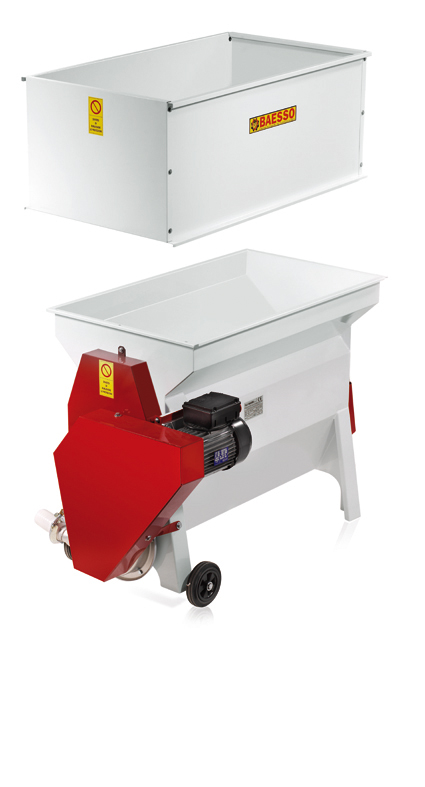

Grapes de-icer with motor and pump for crushing the grains and transferring the must, enameled, with the possibility of tilting the vat for easy access and cleaning. The device is made of enameled sheet metal, the tank being foldable, which allows easy access inside for cleaning. The worm shaft located in the vat leads the grapes underneath, in the area of the perforated stainless steel half-cylinder, where, by means of another vane shaft, the separation of grape berries from bunches occurs, the latter being discharged to the opposite side of the engine. The resulting grains are picked up by another driver worm shaft and carried inside a stainless steel centrifugal pump, where they are crushed by the axial rotation of the vanes of this pump. The resulting must is transported by means of the same pump outdoors, for an average distance of 5 - 6 meters.
Dimensions: 870 x 500 h = 850 mm, capacity: 1,500 - 2,000 kg/h, stainless steel centrifugal pump, vat covered with electrostatic paint 850 x 540 mm, stainless steel perforated half-cylinder, equipped inside with a shaft with stainless steel vanes for the evacuation of grain-cleaned bunches, 220V motor, 2 HP, coupling at the pump outlet for hose attachment, own weight 81 kg. Robust and stable configuration, arranged on two front wheels for easy handling and movement, a device that has been built to ensure simplicity and constant performance in operation.
Use and Maintenance Manual Motor-Disconnector-Pump-Disconnector
Manufacturer: Fratelli Baesso - Italy
