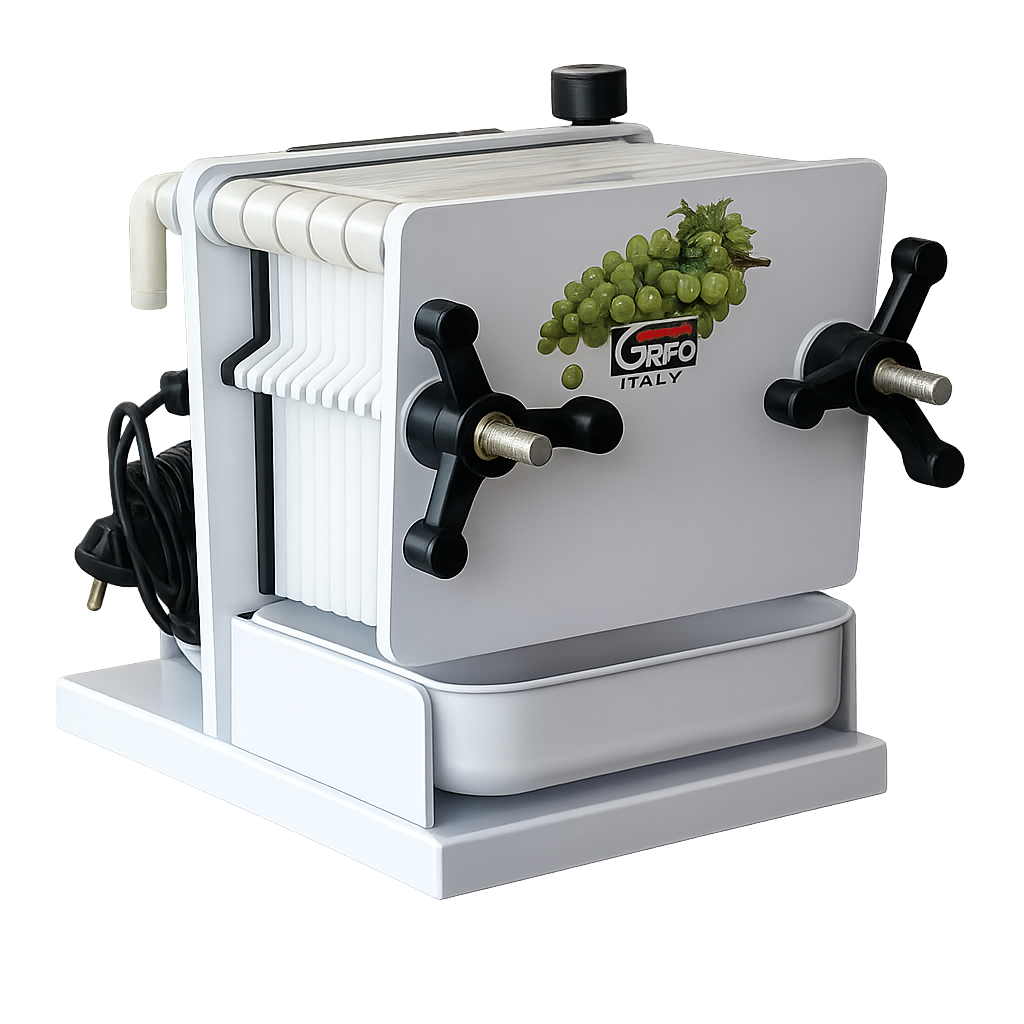

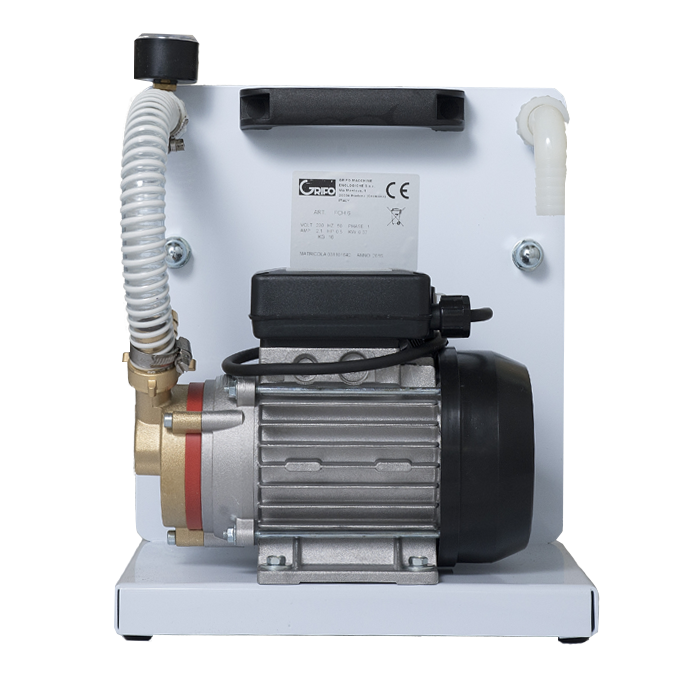

The FCH plate filter for wine or other food-grade beverages — excluding oils — performs wine filtration through 20 × 20 cm filter cardboard sheets with different filtration grades. The filter is manufactured from high-quality materials, featuring an electrostatically painted steel frame. It is equipped with a reversible G20 bronze pump, which can also be used for liquid transfer operations, as well as a pressure gauge.
The intermediate plates are made of food-grade polypropylene. It is used for filtering wine, beverages, beer, natural essences, and other liquids.

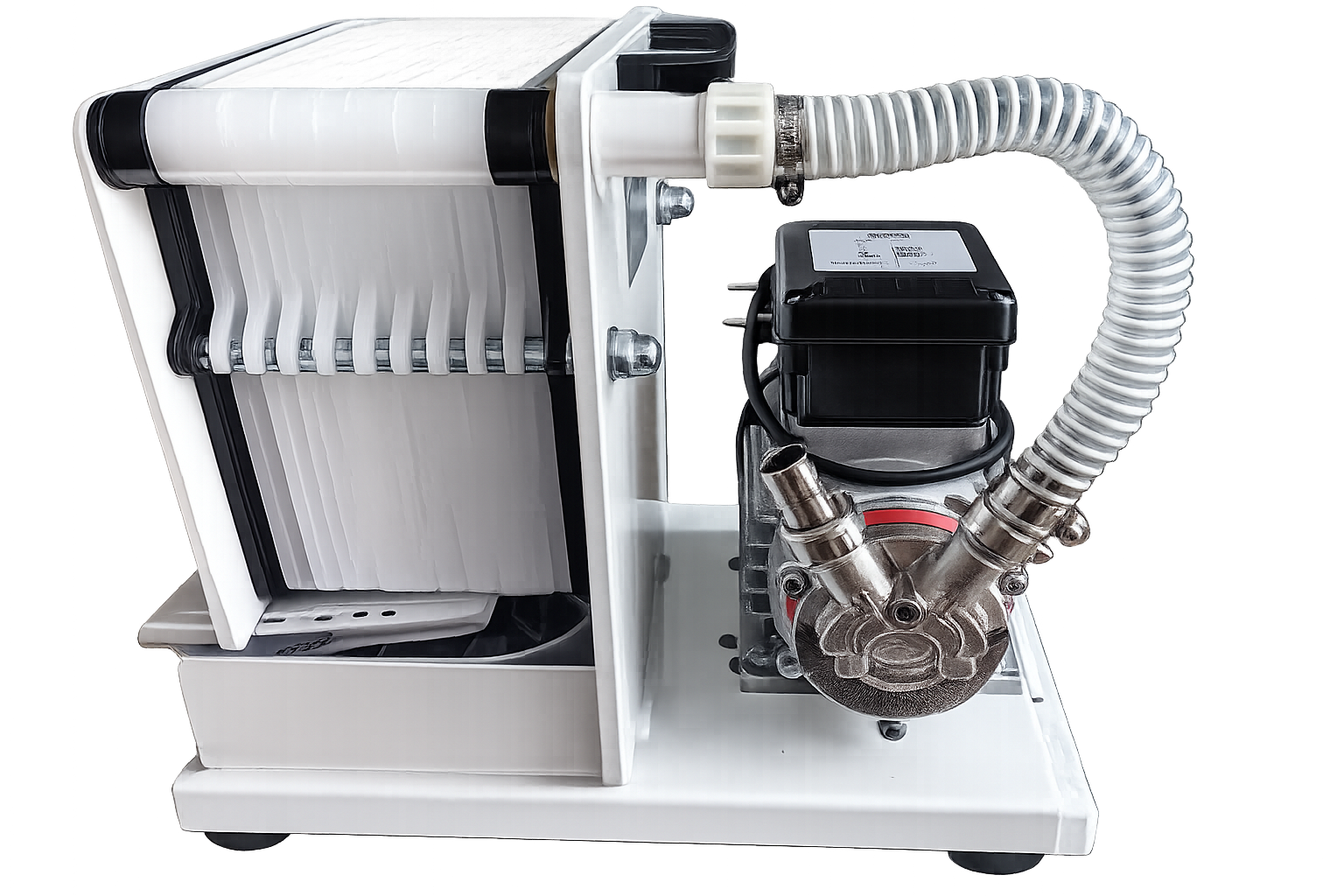

By purchasing this FCH filter model, you are למעשה acquiring two devices in one, because by disconnecting the hose linking the pump to the filtration system, the electric pump can be used separately for liquid transfer or wine racking operations.
| MODEL | NUMBER OF PLATES | FILTER SHEET SIZE | FILTERING SURFACE | CAPACITY (LITERS/HOUR) | MOTOR POWER |
|---|---|---|---|---|---|
| FCH 6 | 6 | 20 × 20 cm | 0.2 m² | 60–250 | 0.5 HP |
| FCH 10 | 10 | 20 × 20 cm | 0.4 m² | 60–250 | 0.5 HP |
Grifo FCH Filter User Manual
Manufacturer: Grifo Macchine Enologiche
